SEALEVEL | PCI Express

COMM+2.PCIe

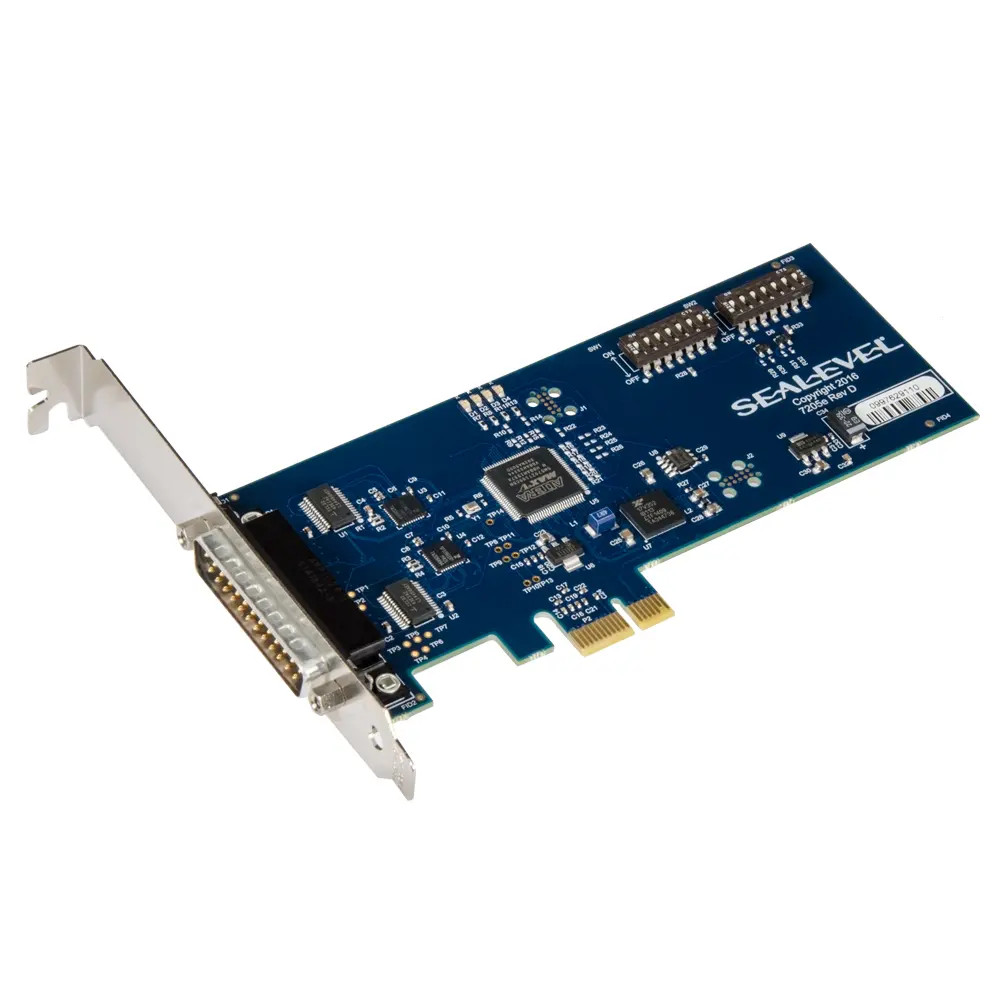

The Ultra COMM+2.PCIe: 2 Port RS-232/422/485 LP PCIe Adapter is a high-performance serial interface adapter providing two configurable ports for RS-232, RS-422, or RS-485. It supports data rates exceeding 1 Mbps and is ideal for data-intensive applications requiring fast, reliable throughput..

  • Detail
  • Special Features
  • Specification

The Ultra COMM+2.PCIe adapter offers robust, ultra-fast communication through two serial ports, each configurable for RS-232, RS-422, or RS-485. Designed with high-speed UARTs and 256-byte FIFOs, it supports asynchronous data rates exceeding 1 Mbps, making it perfect for high-throughput serial communication in demanding applications. The DIP switch allows easy configuration for interface and line termination, with the option for software override through the Windows driver. For added reliability, RS-485 mode automatically handles transmitter enablement, eliminating bus contention risks. The Ultra COMM+2.PCIe is compact, fits in low-profile PCIe slots, and includes a standard-profile bracket for versatile installation.

  • Dual serial ports, configurable for RS-232, RS-422, or RS-485

  • Ultra high-speed UART with 256-byte Tx and Rx FIFOs

  • Electrical interface selection via on-board DIP switch with Windows driver override

  • Software-selectable slew rate limiting to minimize electromagnetic interference (EMI)

  • Automatic RS-485 enable/disable for Windows applications

  • Compatible with any low profile PCI Express slot (standard profile bracket included)

  • Bus-derived 125 MHz BRG and clock prescaler support a wide range of baud rates

  • All modem control signals implemented in RS-232 mode

  • Compliant with RoHS and WEEE directives

  • Windows and Linux compatible with SeaCOM software driver

  • 36" cable included, terminating to two DB-9M connectors (Item# CA203)

  • Product Name: Ultra COMM+2.PCIe: 2 Port RS-232/422/485 LP PCIe Adapter

  • Host Interface: PCI Express

  • Number of Ports: 2

  • Electrical Interface: RS-232, RS-422, RS-485

  • Max Data Rate: Exceeds 1 Mbps

  • Max Data Distance:

    • RS-232: 50 feet

    • RS-485: 4000 feet

  • Operating Temperature: 0°C to 70°C (32°F to 158°F)

  • Dimensions: 5.75 (L) x 2.54 (W) inches

  • Card Height: Low profile (standard profile bracket included)

  • Synchronous / Asynchronous: Asynchronous

  • Communications Chip: Ultra high-speed UART

  • Software: SeaCOM software driver (Windows/Linux)

  • Compliance: RoHS and WEEE directives
